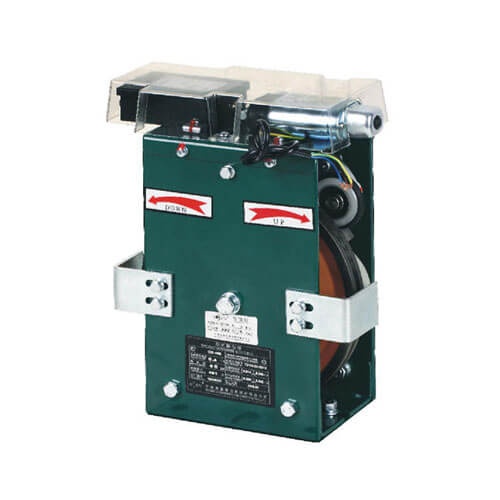

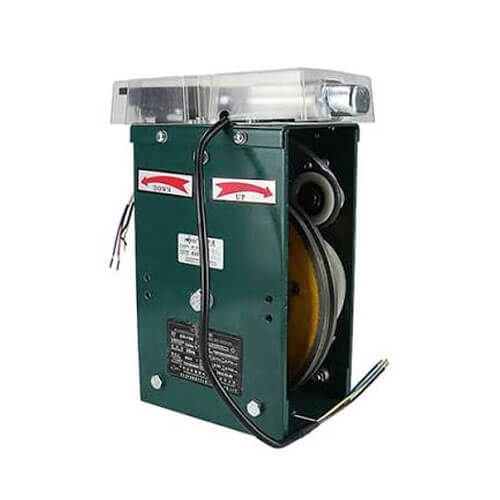

The OX-186 is a two-way elevator speed governor that monitors and controls both upward and downward overspeed. It is designed for villa elevators and machine-room-less elevators. It is available in two models: the OX-186 and the OX-186A.
| Model | OX-186 | OX-186A |
| Rated Speed | ≤0.63 m/s | ≤0.4 m/s |
| Sheave Pitch Diameter | φ200 mm | Φ150 mm |
| Steel Wire Rope Diameter | φ6 mm | |
| Tripping Force | ≥500 N | |
| Power Supply Voltage | AC220V (standard) / DC24V (optional) | |
| Installation Position | Car side or counterweight side | |
