Monadrive MCK300

Permanent Magnet Synchronous Gearless Traction Machine

Voltage: 380V Roping: 2:1 / 4:1
Rated Load: (1250~1600) kg Elv.Speed: (0.5~2.5)m/s
Sheave Diam: 400mm/450mm/480mm Duty: S5-40%
IP Code: IP41 Max. Static Load: 6000kg
Ins.Class: F Weight: 520Kg
Brake: DC110V 2×1.6A

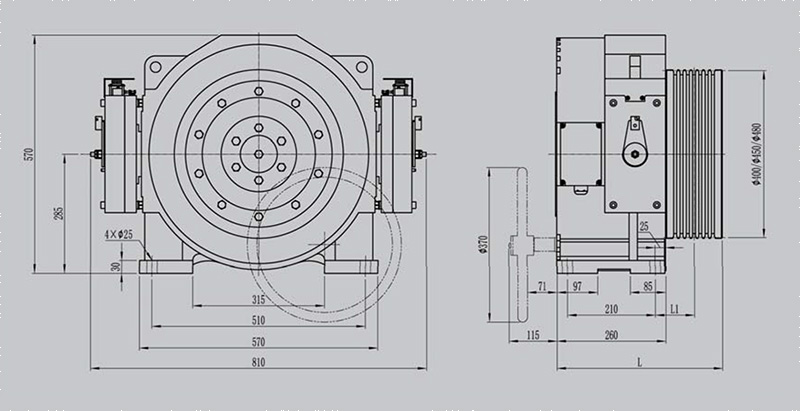

Monadrive MCK100 Dimensions

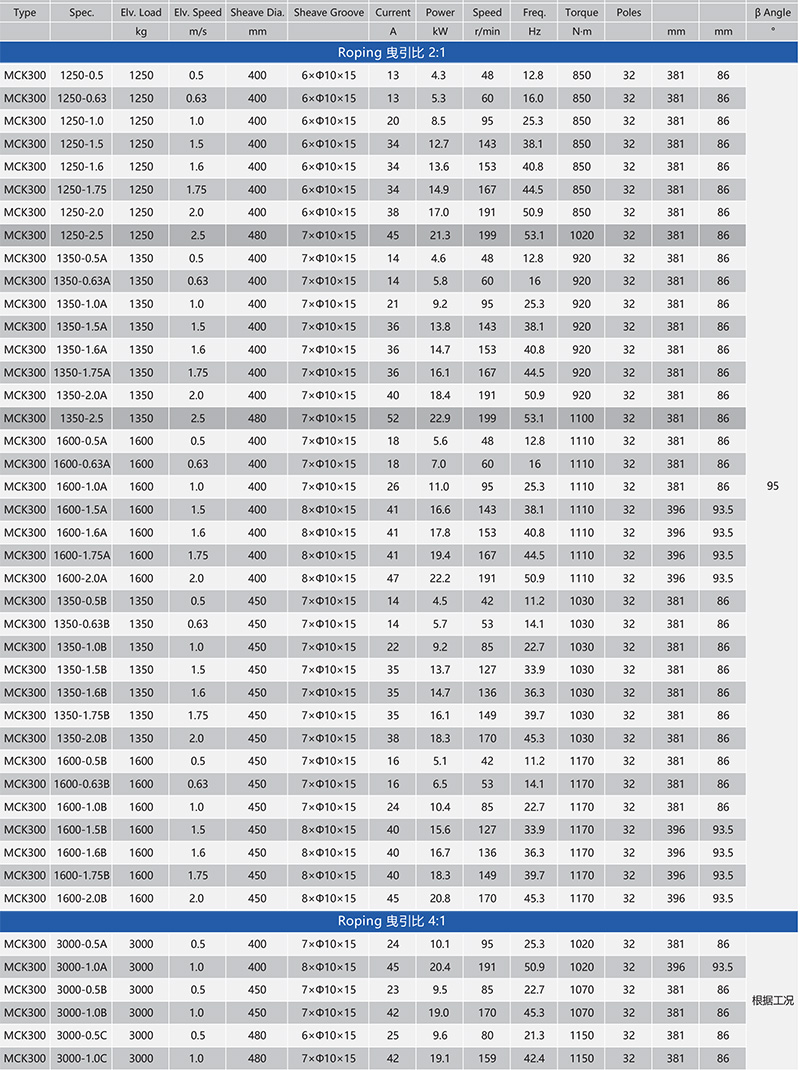

Monadrive MCK300 Specification
