Monadrive MCK500

Permanent Magnet Synchronous Gearless Traction Machine

Voltage: 380V Roping: 1:1 / 2:1
Rated Load: (1600~2000) kg Elv.Speed: (0.5~2.5)m/s
Sheave Diam: 480mm/520mm Duty: S5-40%
IP Code: IP41 Max. Static Load: 10000kg
Ins.Class: F Weight: 765Kg
Brake: DC110V   2×1.2A

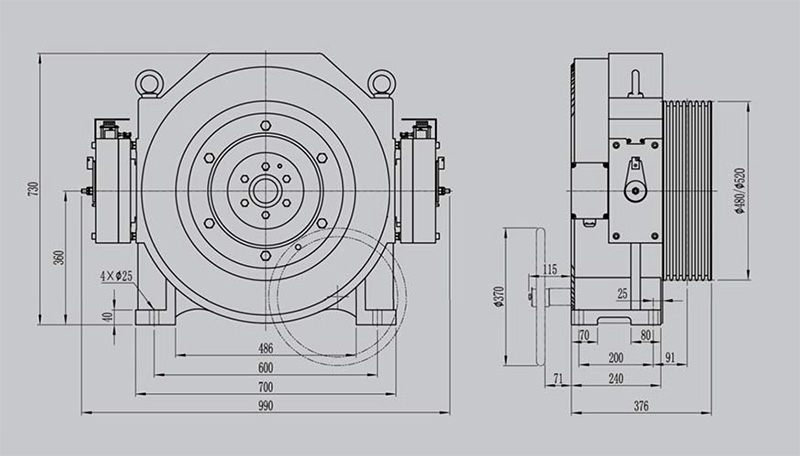

Monadrive MCK500 Dimensions

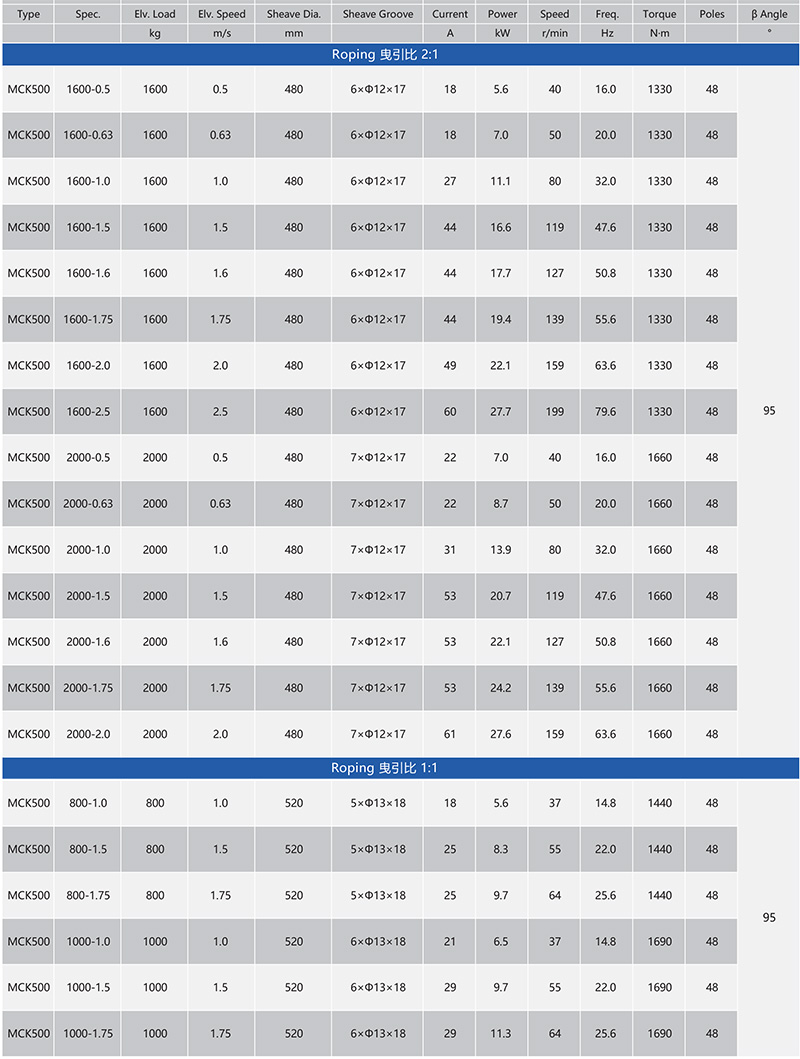

Monadrive MCK500 Specification
