Monadrive MONA180A

Permanent Magnet Synchronous Gearless Traction Machine

Voltage: 220V / 380V Roping: 2:1
Rated Load: (320~450) kg Elv.Speed: (0.4~1.0)m/s
Sheave Diam: 180mm Duty: S5-40%
IP Code: IP41 Max. Static Load: 2000kg
Ins.Class: F Weight: 140Kg
Brake: DC110V   2.4A

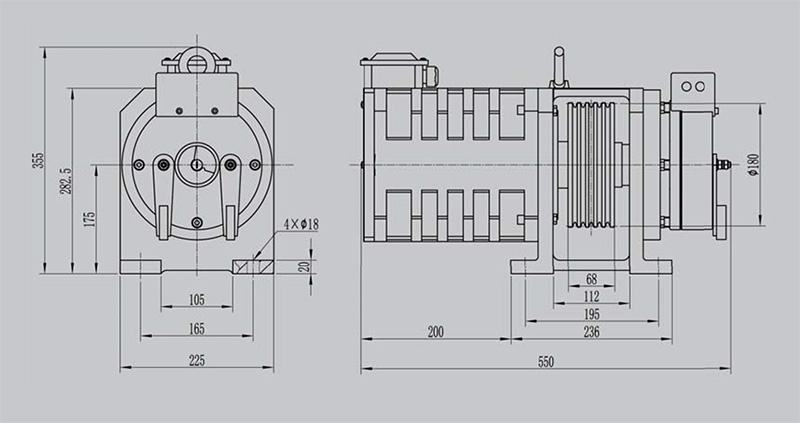

Monadrive MONA180A Dimensions

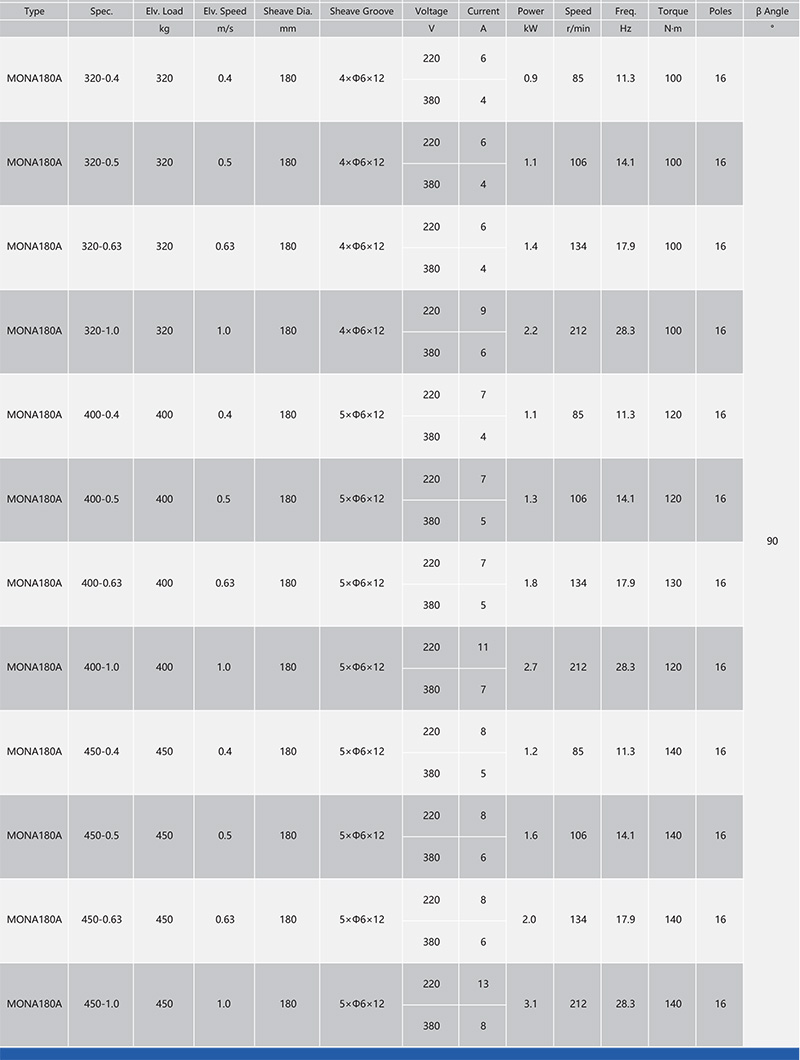

Monadrive MONA180A Parameter
