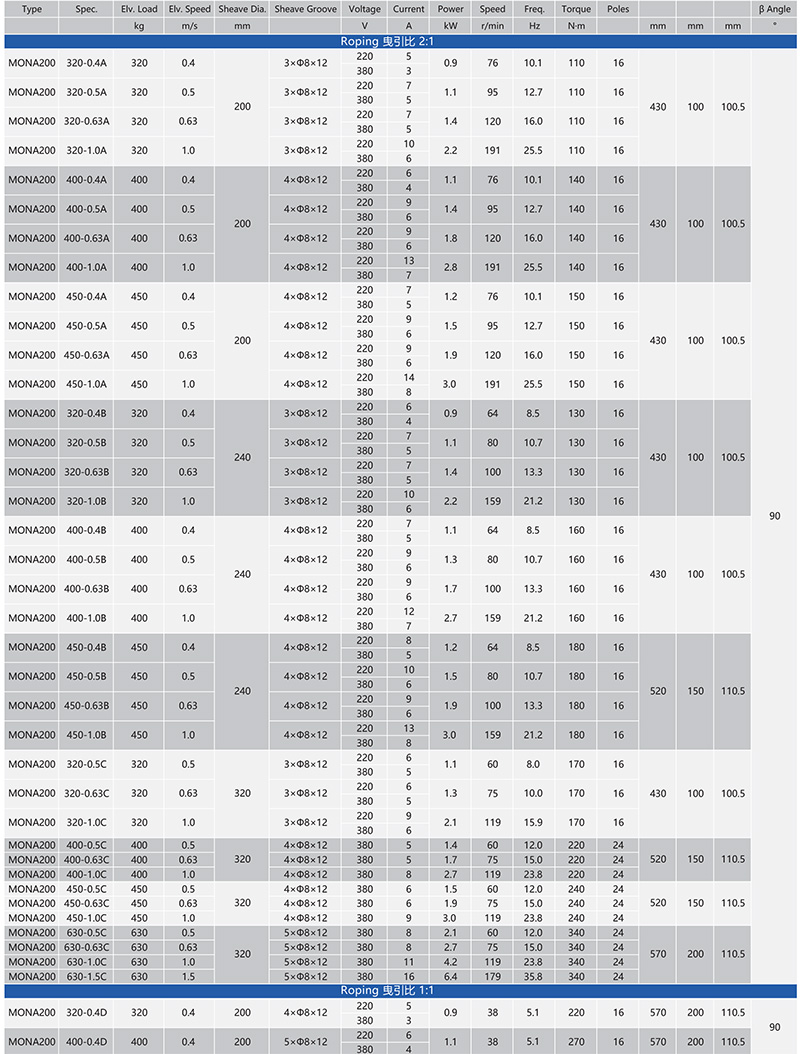

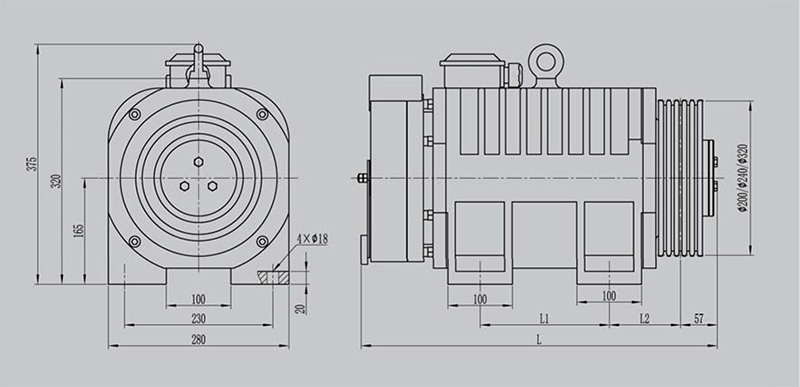

Permanent Magnet Synchronous Gearless Traction Machine
| Voltage: 220V / 380V | Roping: 1:1/2:1 |
| Rated Load: (320~630) kg | Elv.Speed: (0.4~1.5)m/s |
| Sheave Diam: 200mm/240mm/320mm | Duty: S5-40% |
| IP Code: IP41 | Max. Static Load: 2500kg |
| Ins.Class: F | Weight: 210Kg |
| Brake: DC110V 2.5A | |
We have more categories for you, just fill in the form and tell us what parts you want to import from China.
