Monadrive MONA200A

Permanent Magnet Synchronous Gearless Traction Machine

Voltage: 220V / 380V Roping: 2:1
Rated Load: (320~450) kg Elv.Speed: (0.4~1.0)m/s
Sheave Diam: 200mm/240mm Duty: S5-40%
IP Code: IP41 Max. Static Load: 2500kg
Ins.Class: F Weight: 160Kg
Brake: DC110V  2.5A

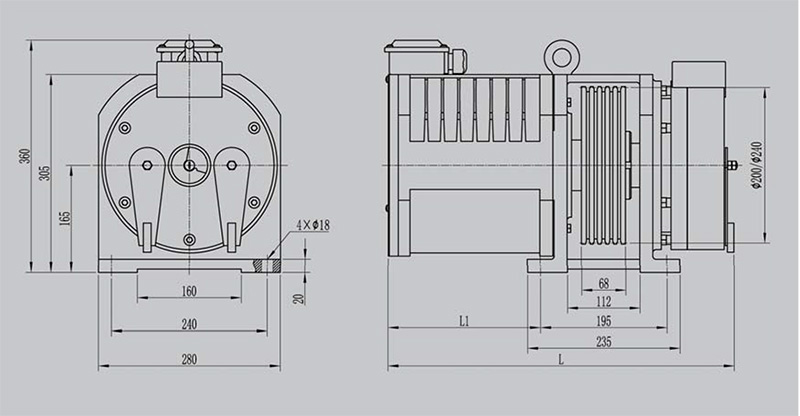

Monadrive MONA200A Dimensions

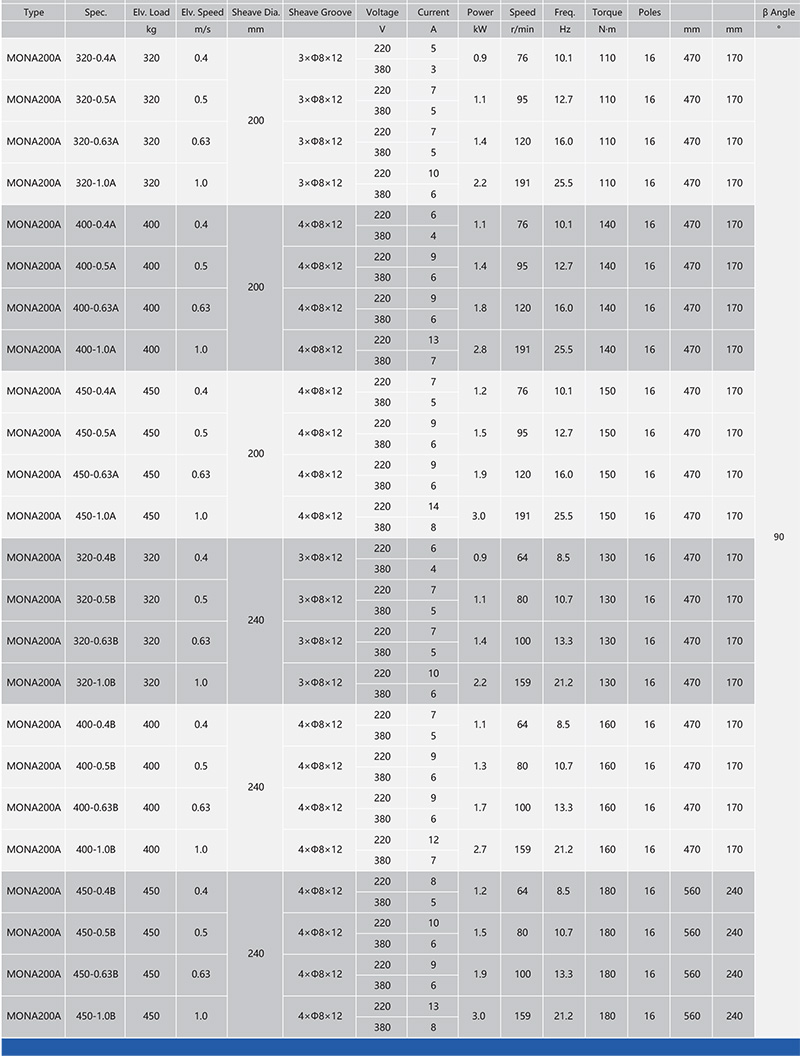

Monadrive MONA200A Parameter
