Monadrive MONA320A

Permanent Magnet Synchronous Gearless Traction Machine

Voltage: 220V / 380V Roping: 2:1
Rated Load: (320~450) kg Elv.Speed: (0.5~1.0)m/s
Sheave Diam: 320mm Duty: S5-40%
IP Code: IP41 Max. Static Load: 2500kg
Ins.Class: F Weight: 200Kg
Brake: DC110V  2.5A

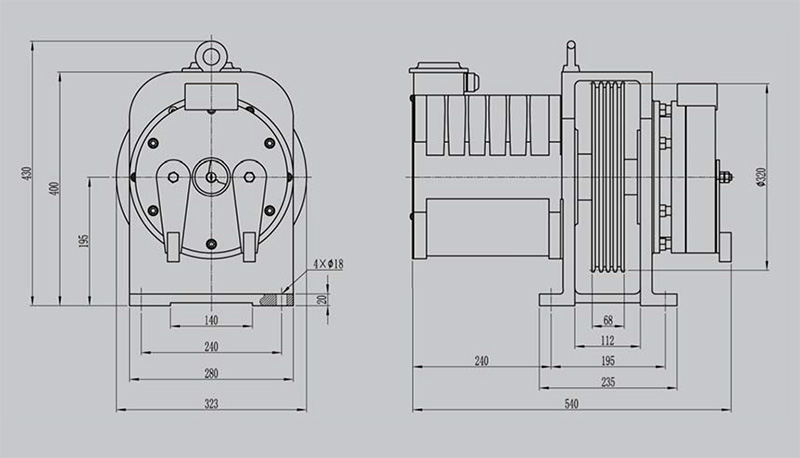

Monadrive MONA320A Dimensions

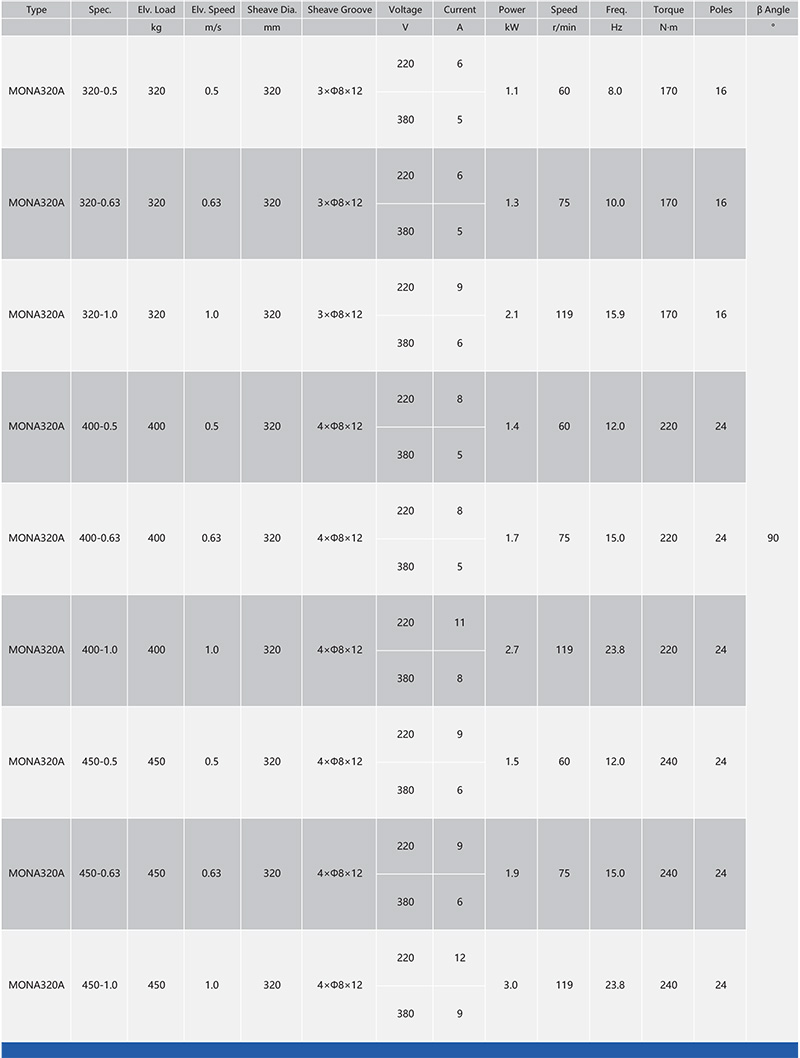

Monadrive MONA320A Parameter
