Monadrive MONA320B

Permanent Magnet Synchronous Gearless Traction Machine

Voltage: 380V Roping: 2:1
Rated Load: (630~1000) kg Elv.Speed: (0.5~1.75)m/s
Sheave Diam: 320mm Duty: S5-40%
IP Code: IP41 Max. Static Load: 3000kg
Ins.Class: F Weight: 290Kg
Brake: DC110V  2.6A

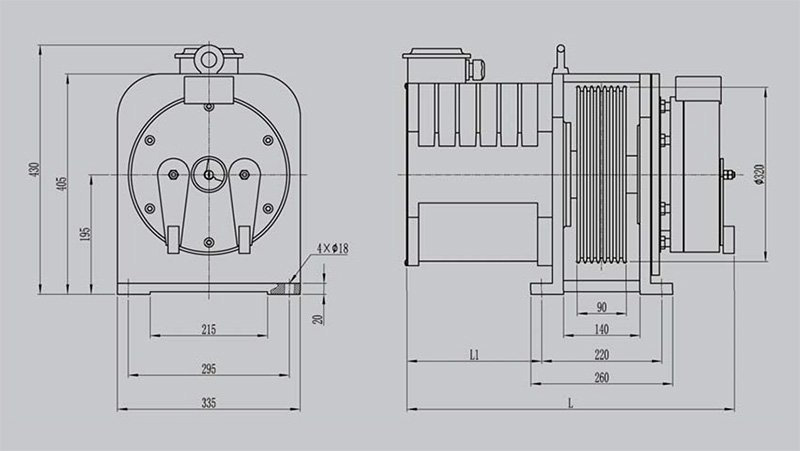

Monadrive MONA320B Dimensions

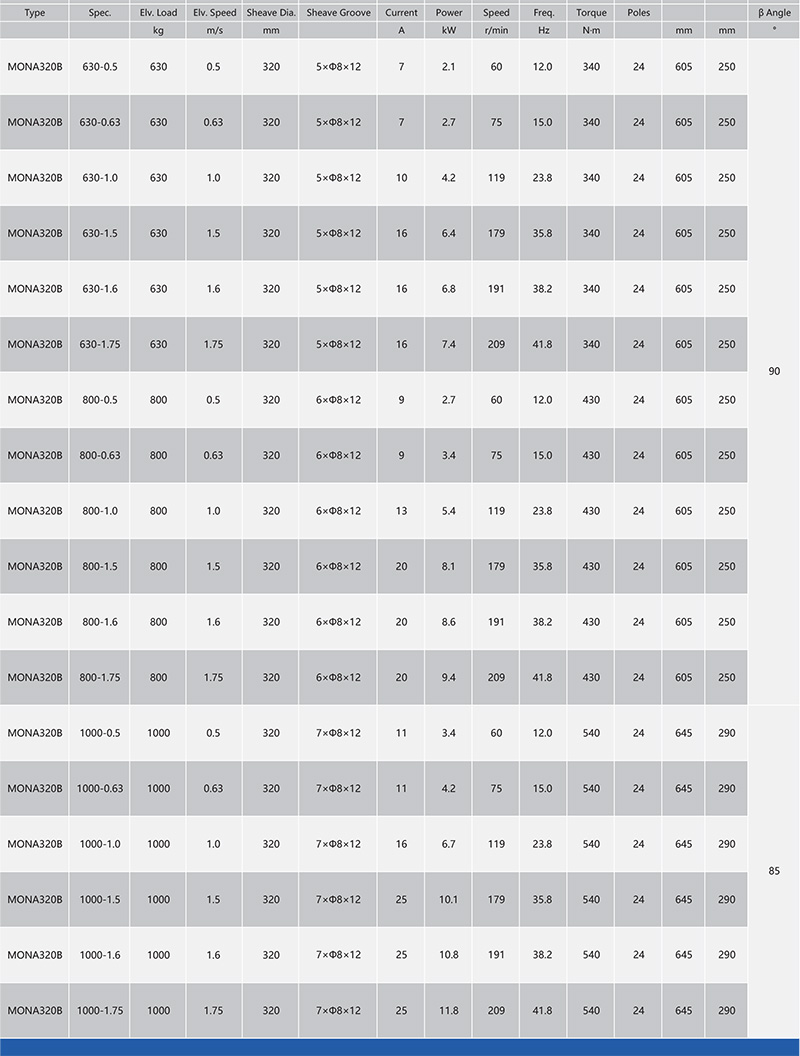

Monadrive MONA320B Parameter
