Monadrive MONA400

Permanent Magnet Synchronous Gearless Traction Machine

Voltage: 380V Roping: 2:1
Rated Load: (800~1600) kg Elv.Speed: (1.0~2.5)m/s
Sheave Diam: 400mm Duty: S5-40%
IP Code: IP41 Max. Static Load: 5500kg
Ins.Class: F Weight: 480Kg
Brake: DC110V  2×2.0A

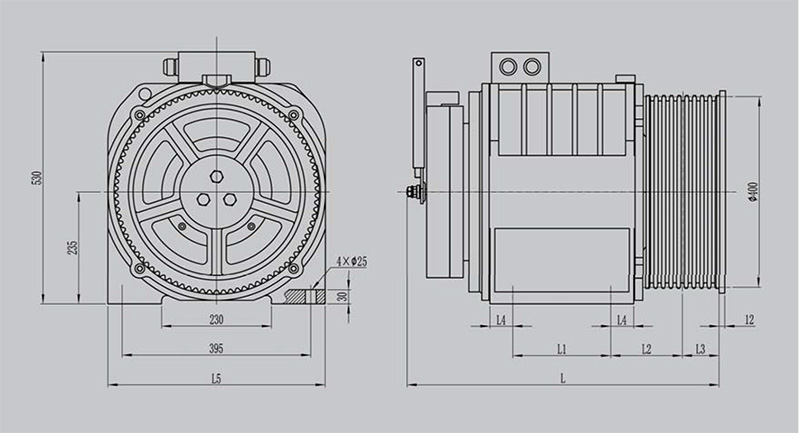

Monadrive MONA400 Dimensions

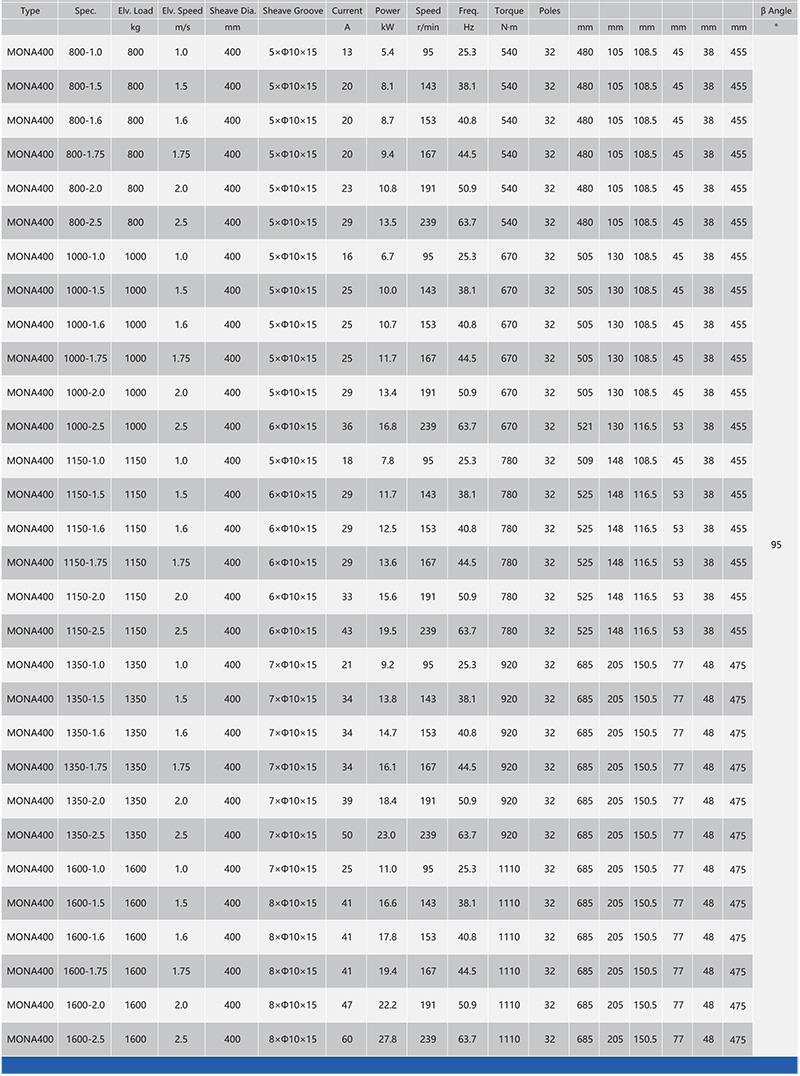

Monadrive MONA400 Parameter
