Monadrive MONA450

Permanent Magnet Synchronous Gearless Traction Machine

Voltage: 380V Roping: 2:1 / 4:1
Rated Load: (1600~3000) kg Elv.Speed: (0.5~3.0)m/s
Sheave Diam: 400mm / 450mm
480mm / 520mm
Duty: S5-40%
IP Code: IP41 Max. Static Load: 12000kg
Ins.Class: F Weight: 900Kg
Brake: DC110V  2×2.5A

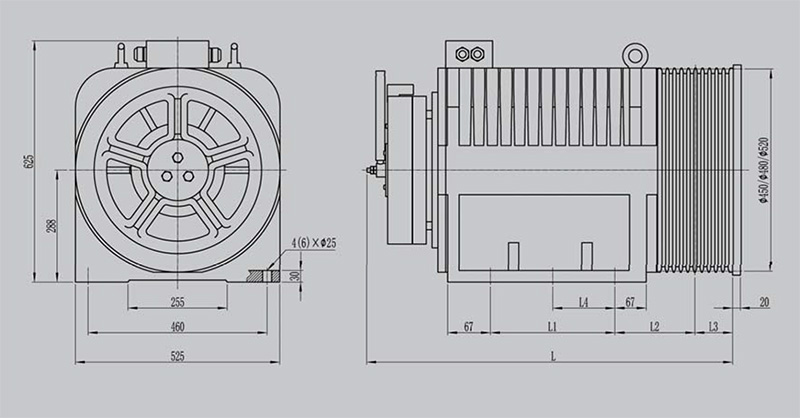

Monadrive MONA450 Dimensions

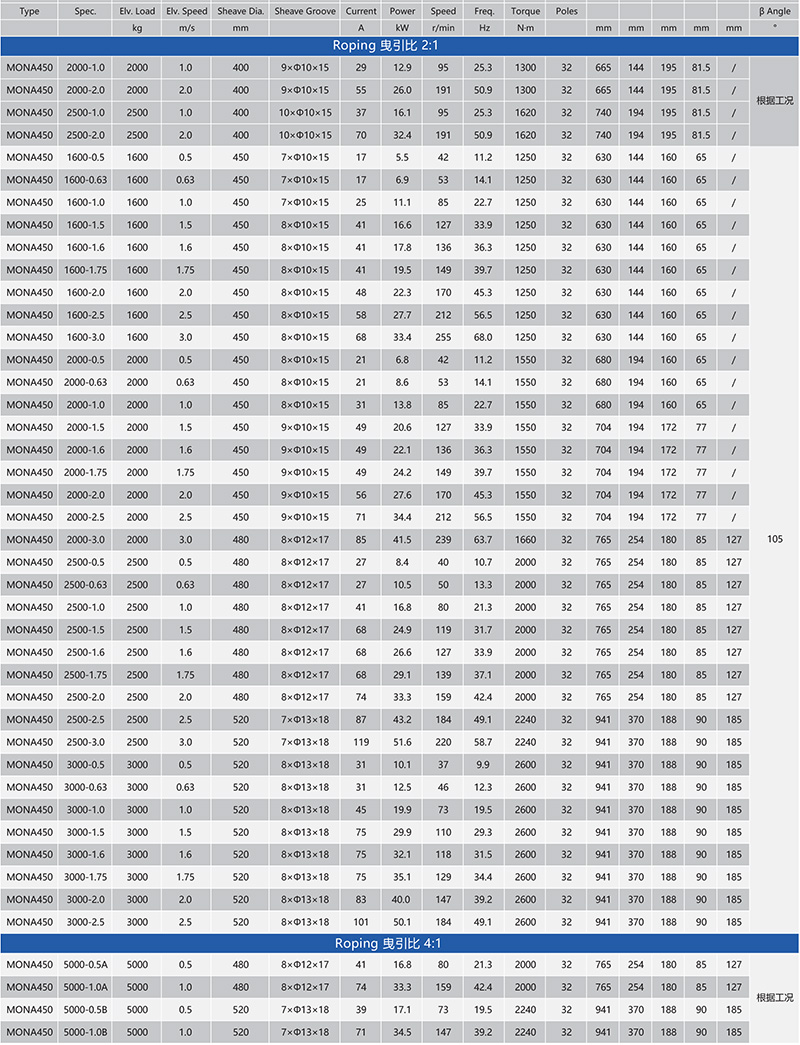

Monadrive MONA450 Parameter
