Permanent magnet synchronous positive drive machine
The machine is only used for machine roomless.
The machine can be equipped with a mounting base optionally.
Parameter
| Voltage | 220V/380V |
| Roping | 1:1 |
| Load(Q+P) | (800~1000)kg |
| Elv. Speed | (0.3~0.4)m/s |
| Sheave Diam. | Φ292mm |
| Shell Protection Grade | IP41 |
| Ins. Grade | F |
| Max. Axle Load | 2000kg |
| Duty | S5-25% |
| Weight | 215kg |

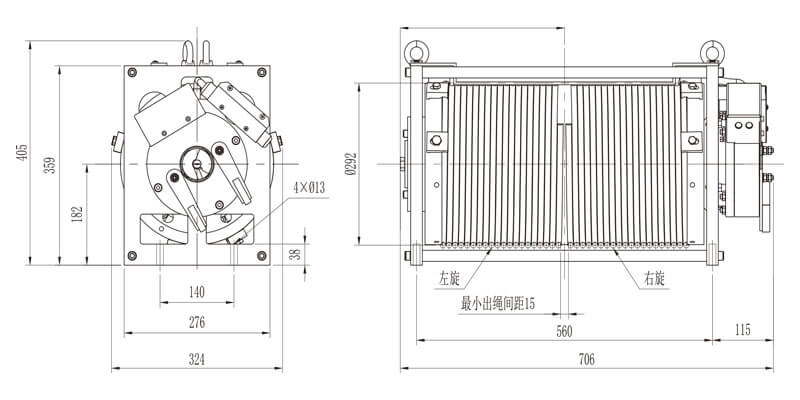

Dimensions
